MIL-PRF-29504B
The first color band shall always be yellow in color which indicates fiber
optic termini and shall always be assigned a numerical value of four. Color
for color bands shall be in accordance with EIA-359. Unless otherwise
specified (see 3.1), colors shall remain within the specified limits during
testing.

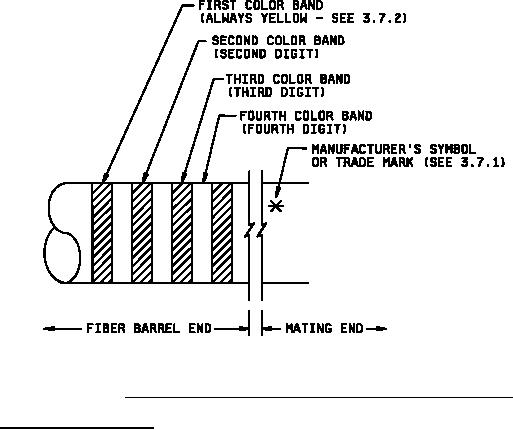

FIGURE 1.
Termini identification color coding
(TICC).
3.7.3 JAN and J marking. The United States Government has adopted, and is
exercising legitimate control over the certification marks "JAN" and "J",
respectively, to indicate that items so marked or identified are manufactured
to, and meet all the requirements of specifications. Accordingly, items or
the packages of items acquired to, and meeting all of the criteria specified
herein and in applicable specifications shall bear the certification mark
"JAN" except that items too small to bear the certification mark "JAN" shall
bear the letter "J". The "JAN" or "J" shall be placed immediately before the
part number except that if such location would place a hardship on the
manufacturer in connection with such marking, the "JAN" or "J" may be located
on the first line above or below the part number, or on the package when item
size precludes markings on parts that are too small. Items furnished under
contracts or orders which either permit or require deviation from the
conditions or requirements specified herein or in applicable specifications
shall not bear "JAN" or "J". In the event an item fails to meet the
requirements of this specification and the applicable specification sheets or
associated specifications, the manufacturer shall remove completely the
military part number and the "JAN" or the "J" from the sample tested and also
from all items and their packages represented by the sample. The "JAN" or "J"
certification mark shall not be used on products acquired to contractor
drawings or specifications. The United States Government has obtained
Certificate of Registration Number 504,860 for the certification mark "JAN"
and Registration Number 1,586,261 for the certification mark "J".
7
