MIL-PRF-29504/15A

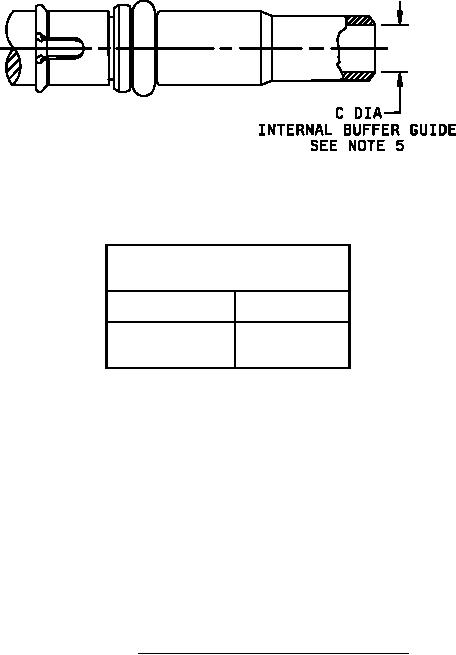

C diameter
(internal buffer guide)
Inches
mm
1.42
0.056
1.35
0.053
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All diameters are to be concentric within .002 inch (0.05 mm).
4. Dimensions apply to plated/finished part.
5. The "C" diameter of the internal buffer guide is used to center the
optical waveguide fiber buffer.
FIGURE 2.
Terminus internal buffer guide.
