MIL-PRF-29504/13A
Inches
mm
.001
0.03
.101
2.57
.104
2.64
.121
3.07
.125
3.18
.300
7.62
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All diameters to be concentric within .002 inch (0.05 mm).
4. Dimensions apply after plating.
5. Tolerance on all angles is +1°, unless otherwise noted.

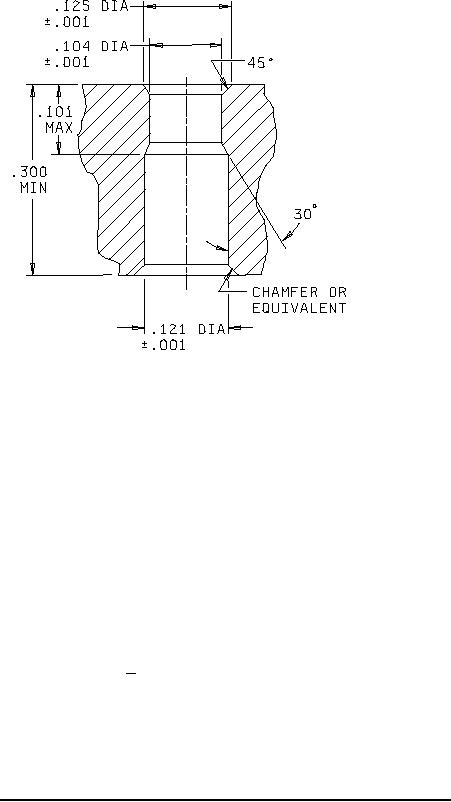

FIGURE 3.
Insert equivalent fixture for terminus measurement.
4
