MIL-PRF-29504/13A
B diameter
C diameter
(internal guide)
(internal buffer guide)
Inches
Mm
Inches
mm
1.14
0.045
0.43
0.017
1.04
0.041
0.36
0.014
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All diameters to be concentric within .002 inch (0.05 mm).
4. Dimensions apply after plating.
5. The "B" diameter of the internal guide is used to center coated optical
waveguide fiber.
6. The "C" diameter of the internal buffer guide is used to center the
optical waveguide fiber buffer.

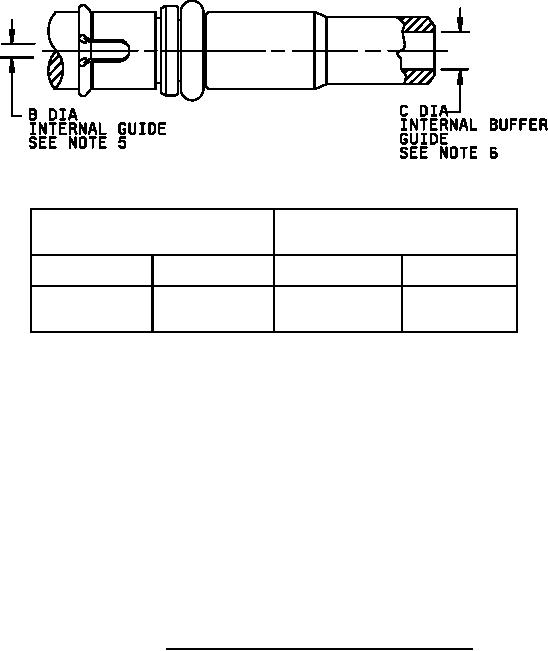

FIGURE 2.
Terminus internal guide and buffer.
