MIL-DTL-83522/16C
mm
Inches
0.32
.0126
2.0
.08
3.3
.13
19.1
.75
1.50

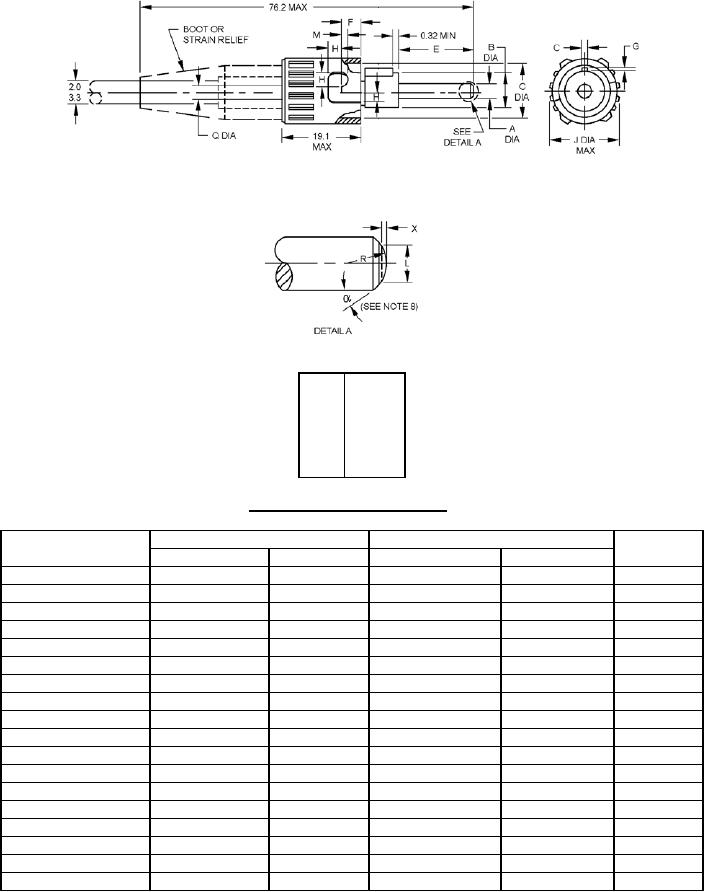

FIGURE 1. Dimensions and configuration Continued.
Millimeters
Inches
Letter
Notes
Min
Max
Min
Max
A (MM/SM)
2.4985
2.4995
0.09837
0.09841
3
A (MM)
2.498
2.500
0.0983
0.0984
3
B
5.25
5.38
0.207
0.212
C
0.91
1.07
0.036
0.042
D
7.06 min
0.278 min
E
7.75
8.00
0.305
0.315
F
2.56
4.50
0.101
0.177
G
0.58
0.89
0.023
0.035
H
1.60 min
0.063 min
J
9.40
9.80
0.370
0.386
L
2.00
2.00
0.079
0.079
4
M
0.64
1.12
0.025
0.044
N
8.56 min
0.337 min
5
Q
1.04
1.60
0.041
0.063
R (MM/SM)
8
25
0.3
1.0
6
R (MM)
8 min
0.3 min
6
X (MM/SM)
0.020
0.063
0.0008
0.0025
7
X (MM)
0.000
0.063
0.0000
0.0025
7
2
