INCH-POUND
MIL-PRF-28876/26D
4 October 2004
SUPERSEDING
MIL-C-28876/26C
9 July 1992
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, FIBER OPTIC, CIRCULAR, PLUG AND RECEPTACLE STYLE,
MULTIPLE REMOVABLE TERMINI, SCREW THREADS,
WALL MOUNTING, WITH SHORT BACKSHELL, NON-ENVIRONMENT RESISTING
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring fiber optic connectors described
herein shall consist of this specification sheet and MIL-PRF-28876.
Inches
mm
.010
0.25
.016
0.41
.030
0.76
.100
2.54
.130
3.30
.188
4.78
.200
5.08
.380
9.65
.470
11.94
.878
22.30
.898
22.81
.978
24.84
1.263
32.08

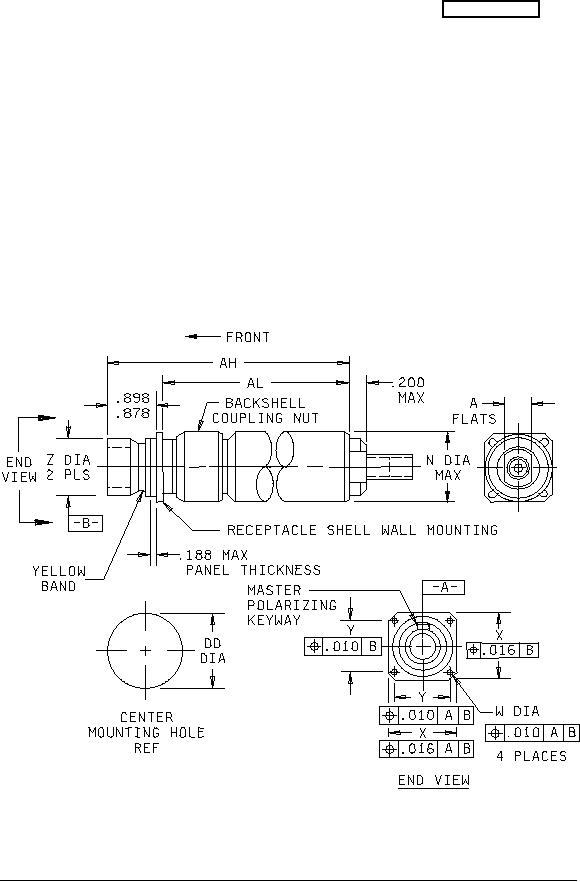

FIGURE 1.
Wall mounting receptacle connector with short straight backshell.
AMSC N/A
FSC 6060
