MIL-PRF-29504/3B
Inches
mm
.001
0.03
.101
2.57
.104
2.64
.121
3.07
.125
3.18
.300
7.62
NOTES:
1.
Dimensions are in inches.
2.
Metric equivalents are given for general information only.
3.
All diameters to be concentric within 0.002 inch (0.05 mm).
4.
Dimensions apply after to plated/finished part.
5.
Tolerance on all angles is +1°, unless otherwise noted.

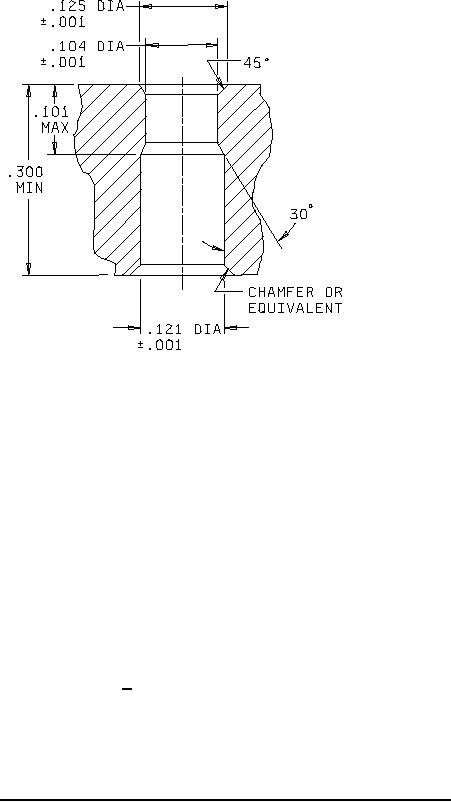

FIGURE 2.
Insert equivalent fixture for terminus measurement.
3
