MIL-PRF-29504/14A
Inches
mm
.001
0.03
.101
2.57
.104
2.64
.121
3.07
.125
3.18
.300
7.62
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All diameters are to be concentric within .002 inch (0.05 mm).
4. Dimensions apply to plated/finished part.
5. Tolerance on all angles is +1°, unless otherwise noted.

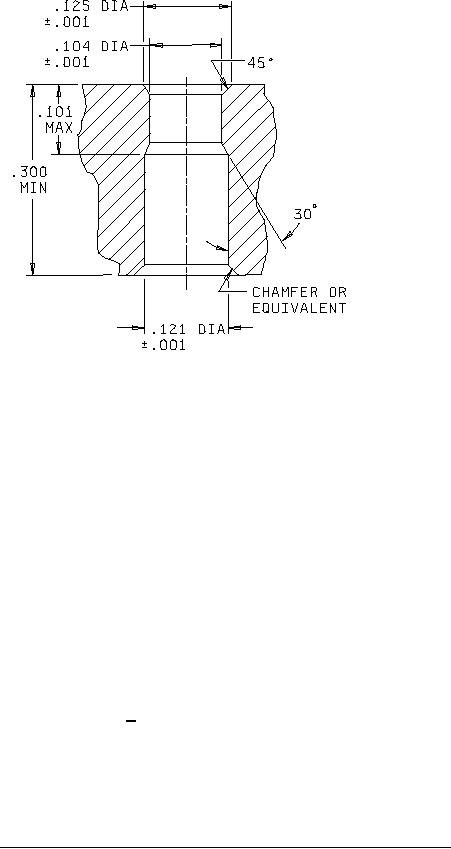

FIGURE 3.
Insert equivalent fixture for terminus measurement.
4
