MIL-PRF-28876/8E
Termini: Style P (pin) or S (socket). See MIL-PRF-29504/1, MIL-PRF-
29504/2, MIL-PRF-29504/12, MIL-PRF-29504/13, MIL-PRF-29504/14, and MIL-PRF-
29504/15 (For dummy terminus, see MIL-PRF-29504/3).
Cleaning procedures: Each shipment of connectors shall include recommended
cleaning procedures. The following wording or equivalent is recommended
"To clean, use lint free wipe dampened with alcohol and blow dry with air".
Shell polarization: 1 through 6 keyway positions.
See MIL-PRF-28876
appendix A, figure A-3.

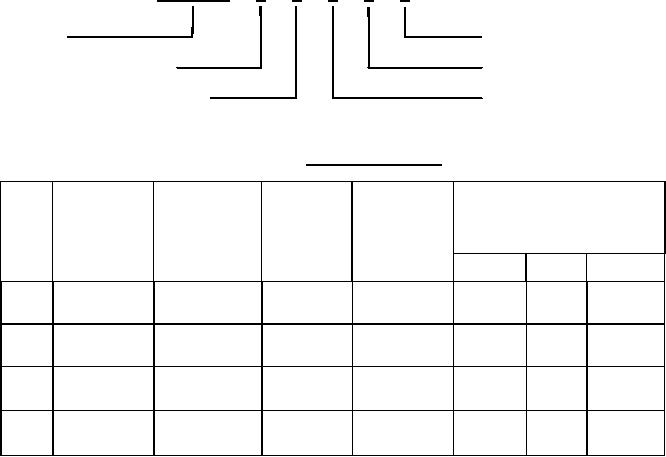

Marking:
PIN:
Marked on coupling nut of plug (see table I).
M28876/8
A
1
2
P
1
Basic PIN
Keying position number
Shell size designator
Terminus/insert style
Insert arrangement number
Backshell dash number
TABLE I.
PIN designators.
Maximum cable
Key
Terminus/
outer diameter in
Shell Shell size
Insert
position
insert
accordance with
size designator arrangement
style
backshell dash number
number
-1
-2
-3
.346
.250
11
A
1
P or S
1, 2, 3,
(6.35) (8.79)
4, 5, or 6
13
B
1
P or S
1, 2, 3,
.285
.346
.453
(7.24) (8.79) (11.50)
4, 5, or 6
15
C
1 or 2
P or S
1, 2, 3,
.500
.250
.375
4, 5, or 6 (12.70) (6.35)
(9.53)
23
F
1 or 2
P or S
1, 2, 3,
.866
1.000
.600
4, 5, or 6
22.00
25.40
(15.24)
Mating counterpart: Receptacle connectors specified in MIL-PRF-28876/1
through MIL-PRF-28876/5 and MIL-PRF-28876/11 through MIL-PRF-28876/14.
Installation and removal tools:
As specified in NAVSEA drawing 6872813.
For qualified products listing, quality conformance, and periodic
inspections, dummy termini shall be used in all unused cavities.
