MIL-C-83522/8C
Inches
mm
Inches
mm
.002
0.05
.230
5.84
.005
0.13
.250
6.35
.010
0.25
.261
6.63
.030
0.76
.266
6.76
.040
1.02
.278
7.06
.050
1.27
.282
7.16
.0625
1.585
.295
7.49
.065
1.65
.305
7.75
.075
1.91
.355
9.02
.090
2.29
.360
9.14
.100
2.54
.365
9.27
.1251
3.177
.370
9.40
.1256
3.190
.389
9.88
.150
3.81
.395
10.03
.160
3.06
.405
10.29
.170
4.31
.455
11.56
.208
5.28
.465
11.81
.216
5.48
.590
14.99
.225
5.72
.605
15.37
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm) for three place decimals.
4. When applicable, three holes .016 (0.41 mm) minimum diameter, equally spaced, are required for safety
wiring after mating. Location on the coupling nuts optional.

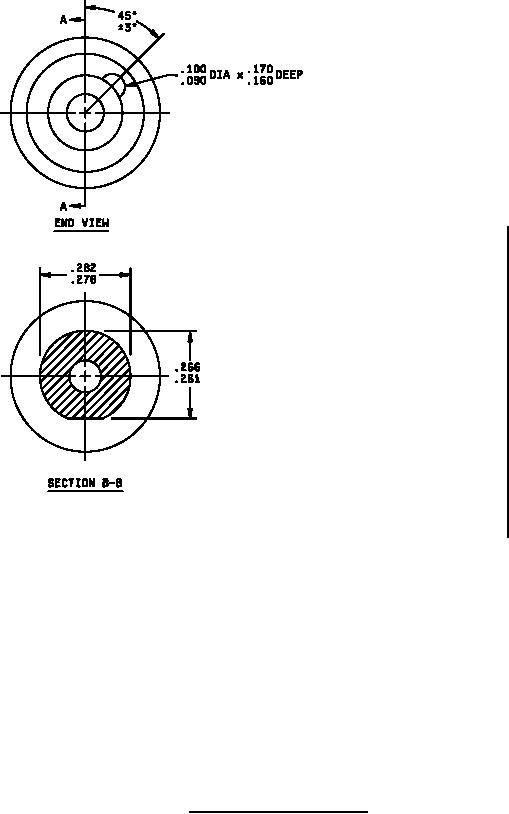

FIGURE 1. Dimensions and configuration Continued.
2
