MIL-C-83522/7C
Inches
mm
Inches
mm
.0005
0.013
.190
4.83
.001
0.03
.210
5.33
.002
0.05
.212
5.38
.003
0.08
.245
6.22
.004
0.10
.250
6.35
.005
0.13
.280
7.11
.01
0.3
.290
7.37
.010
0.25
.305
7.75
.030
0.76
.322
8.18
.0025
1.588
.337
8.56
.065
1.65
.375
9.53
.076
1.93
.389
9.88
.093
2.36
.437
11.10
.1251
3.178
.535
13.59
.150
3.81
.546
13.87
.185
4.70
.764
19.41
.187
4.75
.771
19.58
.970
24.64
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm) for three place decimals.

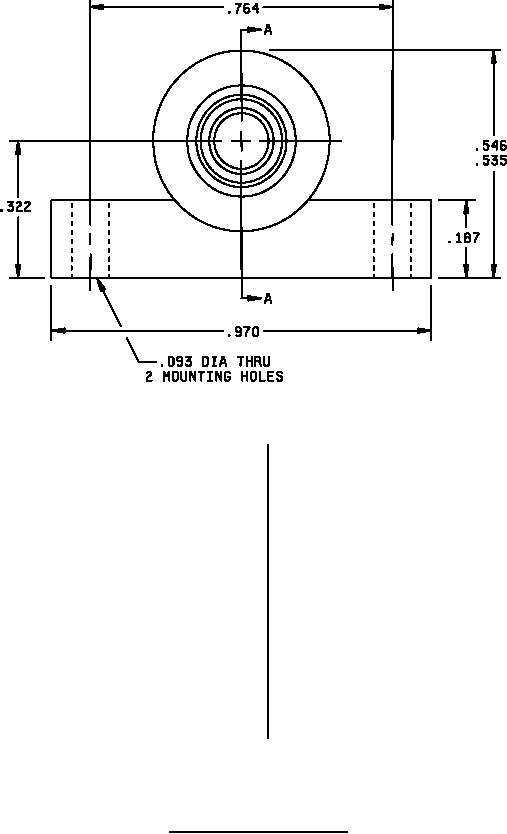

FIGURE 1. Dimensions and configuration Continued.
2
