MIL-C-83522/3G
Inches
mm
Inches
mm
.0003
0.008
.185
4.70
.001
0.03
.208
5.28
.002
0.05
.216
5.49
.005
0.13
.235
5.97
.010
0.25
.250
6.35
.030
0.76
.261
6.63
.034
0.86
.267
6.78
.042
1.07
.277
7.04
.050
1.27
.282
7.10
.0625
1.588
.370
9.40
.076
1.93
.382
9.70
.1251
3.178
.536
13.61
.1256
3.190
.7730
19.634
.150
3.81
.925
23.50
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are for general information only.
3. All dimensions are after plating.
4. Flat to be within ± 1 percent of surface -X-.
5. No burrs or nicks for entire length.

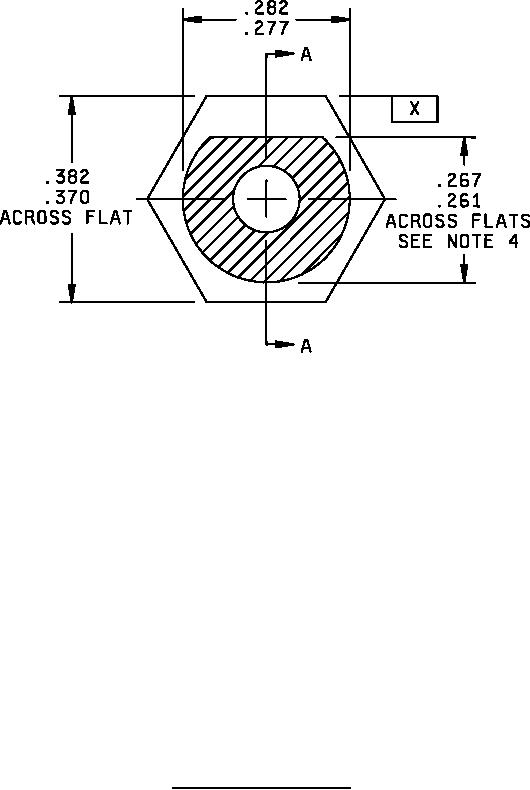

FIGURE 1. Dimensions and configuration Continued.
2
